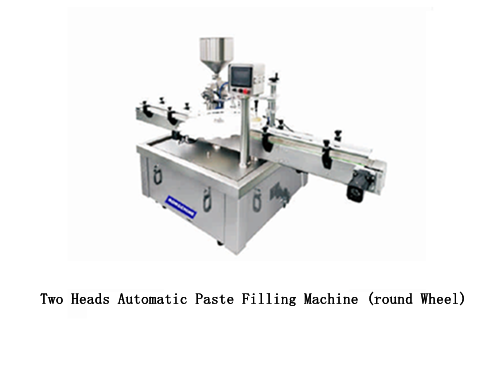

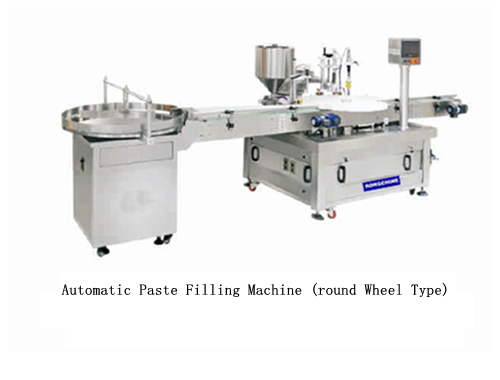

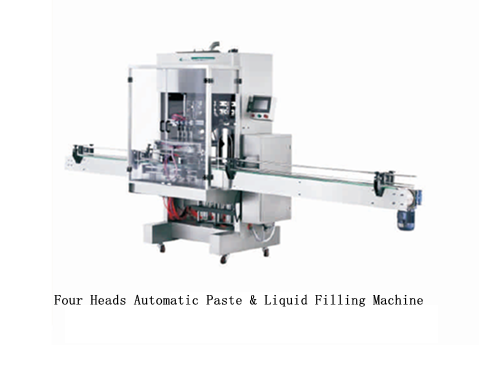

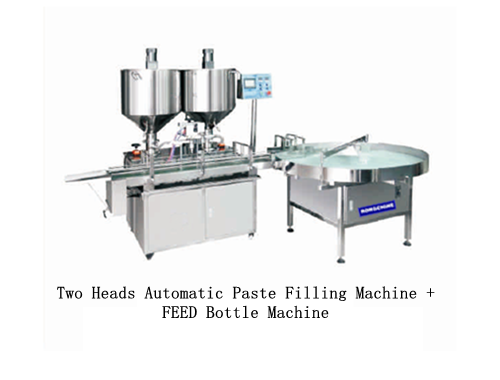

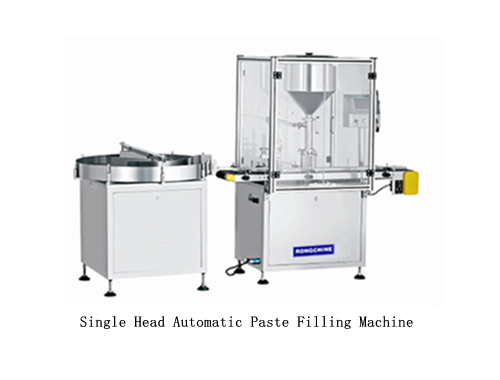

Automatic Cream & Paste Filling Machine

Product Description

The automatic cream & paste fling machine adopts programmable logic controller (PL C) human machine interface (HMI) technology, equipped with the imported photoelectric track switch from Korea, which is suitable for fling ointment products in the industries such as ointment, oil products, syrup, flavoring paste, fruit juice and etc. The filing nozzle will be automatically inserted into the bottle to carry out the flling and then rapidly ascend, which can reduce the bubbles.

The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electronic speed control of the fling speed and fling volume and convenient disassembly and cleaning. The new type fling equipment is the best choice for the realization of automatic production.


Specification

Filling volume (ml) Productity (b/h) Flling speed Filling precision Air supply
10-50 1500-3500 可调Adjustable ≤ 土 1% 0.4-0.8MPa
80-300 1500-3000 可调Adjustable ≤ 土 1% 0.4-0.8MPa
100-500 1500- 2500 可调Adjustable ≤ 土 1% 0.4-0.8MPa
300-1000 1500- 2500 可调Adjustable ≤ 土 1% 0.4-0.8MPa
1000-5000 1000-2000 可调Adjustable ≤ 土 1% 0.4-0.8MPa











Note: The fling precision reach士0.5% if flling system adopt servo motor, the flling speed can be adjusted freely and fling volume can be wider .
