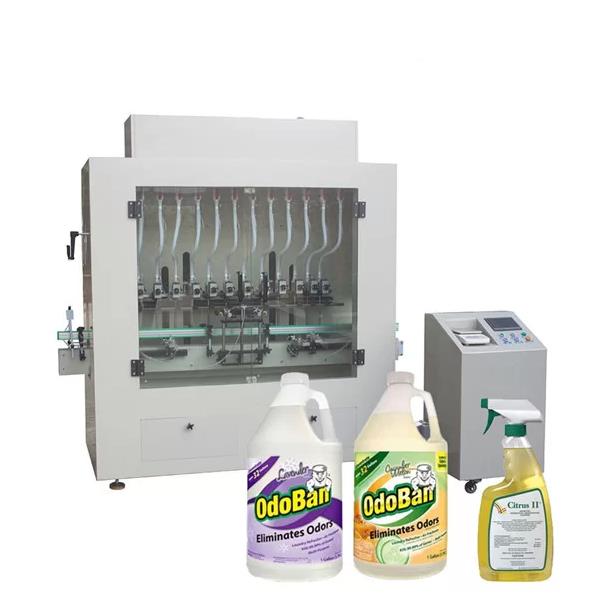

Automatic corrosive liquid filling machine

Product Description

Corrosive products are dangerous to personnel and accelerate the service life of equipment. Therefore, for these types of products, filling machines must be designed to control personnel's exposure to harmful liquids and gases. It is also important to choose building materials and other special design features to protect the buyer's investment. Due to a lack of foresight in this area, there are many examples of tragic accidents. In addition, machines that are not built correctly for these environments will show up in severe disrepair and decay within 6 months.

In general, the time gravity filling machine dominates the corrosive chemical filling industry because it is simple to operate, and it does not pressurize or recycle these chemicals, which increases the risk of contact with people. Because the filling machine is used for corrosive substances that normally erode metal parts, in this gravity filling machine, there are special design considerations for structural materials and fasteners.

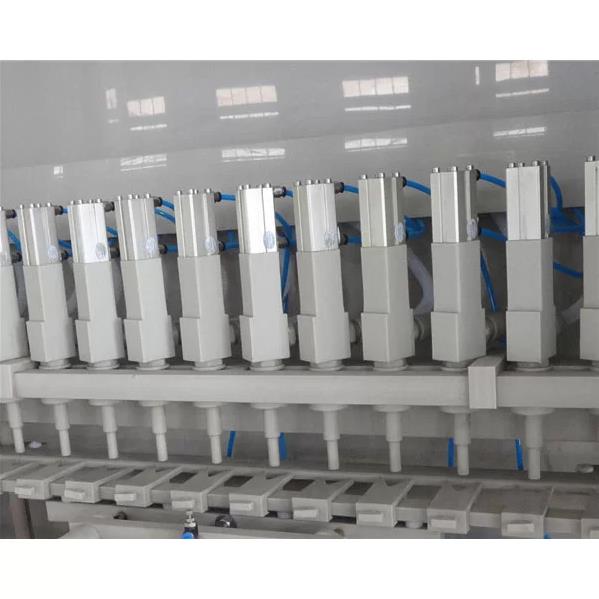

The machine adopts a straight line structure, the number of filling heads can be customized according to different production capacity, such as 6/8/10/12/16/20 heads.
Suitable for filling acid, alkali, strong corrosive pesticides, 84 disinfectants, toilet cleaners, iodine and so on.

Specification

model

Automatic gravity filling machine (corrosive liquid)

nozzle

6

8

10

12

16

20

Idea Filling Range

100-1000ml500-5000ml

Application bottle

Round, flat or regular bottle

Per 1000 ml capacity

24 bottles/min

32bottles/min

40bottles/min

48bottles/min

64bottles/min

80bottles/min

power supply

220V50hz
