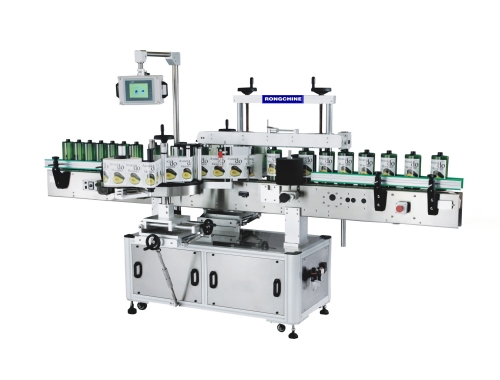

Automatic Locating And Labeling Machine For Round Bottle

Product Description

The automatic positioning round bottle labeling machine is suitable for labeling the circumference and side of round bottles. It can be single label and double label, and the distance between the front and back double labels can be adjusted flexibly. It is widely used in the labeling of round bottles in various industries, such as food cans, Cosmetic round bottle, medicine bottle, etc.

The roller friction label structure is the best feature of the machine, labeling is very accurate and high speed.Labeling machine used belt rubbing labels device in the past. Deflection often occurred during the belt operation, which affected the accuracy of the label. But the roller rubbing labels device completely eliminate the inaccurate phenomenon.

Simple structure, easy to operate and maintain.

Change different bottle sizes no need to replace any spare parts, because the separation kit is versatile.

Servo motor drive labeling head, maximum labeling speed can up to 60m /min.

Advanced humanized interface and online help system.

Specification

Labeling speed

Max 120pieces/min

Labeling accuracy

±0.1mm

Max label width

100mm

Applicable product size

φ30-φ80mm

Applicable inner diameter of paper

φ76mm

Applicable outer diameter of paper

φ350mm/Maxφ350mm

Dimension

2000*800*1650mm

Voltage

220V 50Hz 1000W

Weight

300KG
