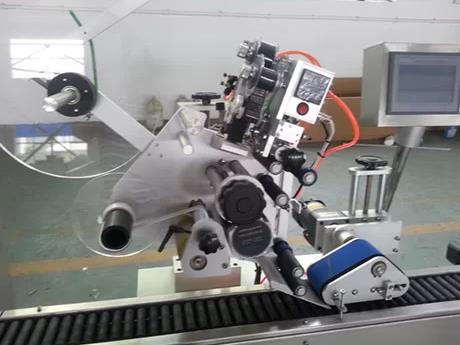

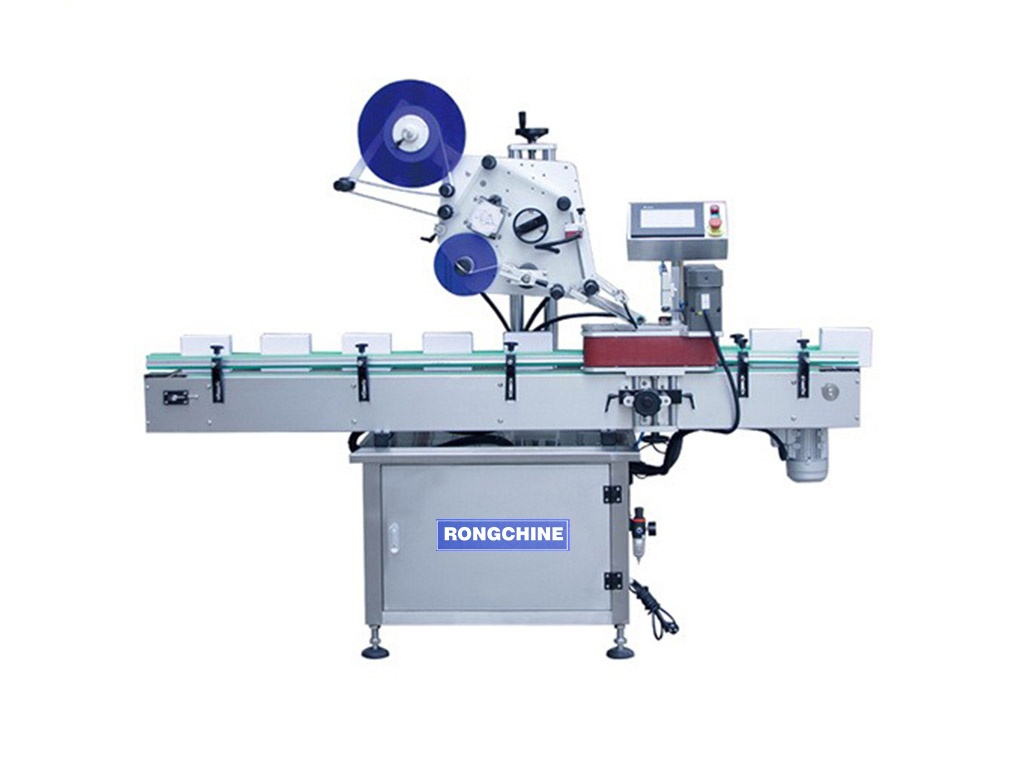

Automatic top surface without adhesive labeling machine

Product Description

Top surface adhesive labeling machine, can label the top carton, tin cans, bags and various planes.
Labels are adhesive / self-adhesive, surface labeling machine.
The top surface adhesive labeling machine is suitable for all kinds of objects with planes, such as boxes, bottles, cans, etc. Widely used in cosmetics, beverage, chemical, medical, food and other industries, stationery CD, all kinds of oil, etc., top labeling machine plane.

Specification

name

Top surface without adhesive labeling machine

The labeling speed

20-200 pcs / min (depending on the label length and bottle thickness)

object height

And 30-200 mm

Object thickness

From 20-200 mm

Tagged height

From 15-110 mm

Label length

From 25-300 mm

Label roller inner diameter

76 mm

Label roller outer diameter

350 MM

The accuracy of the label

± 0.8 mm

source

220V 50/60HZ 0.75KW

Printer oil consumption

5 Kg / cm ^ 2 (if added)

Dimensions of labeling machine

1600 (long) 550 (W) 1600 (high) mm

Corner weight

250 Kg
