Product Description

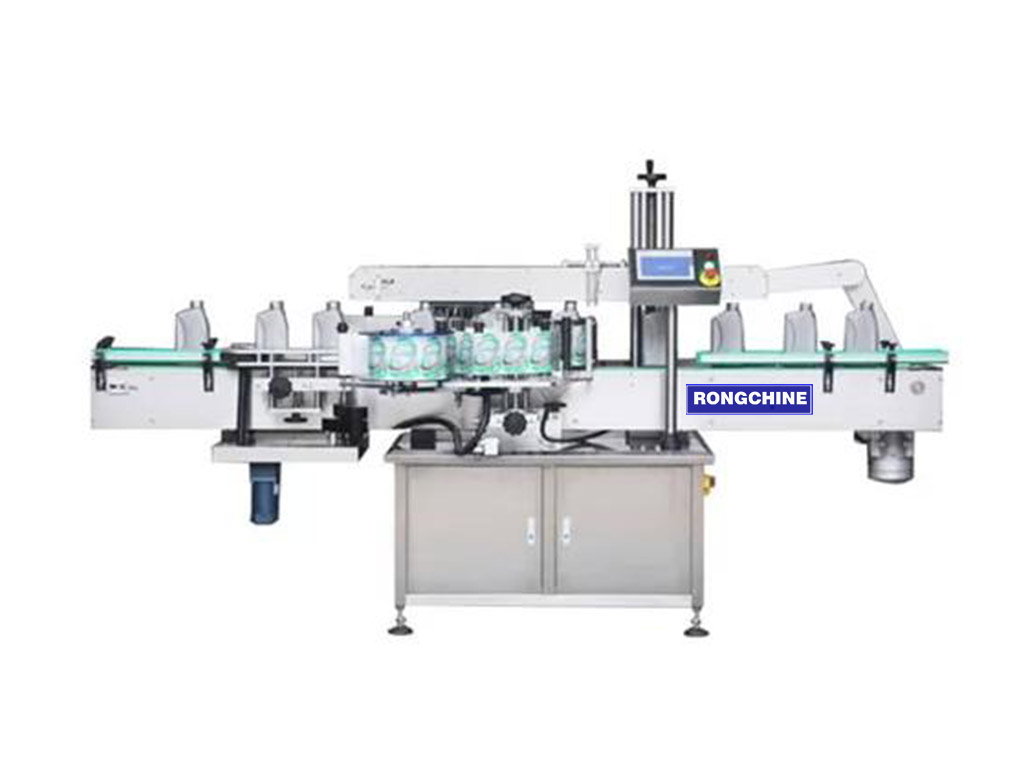

The double-sided bottle labeling machine can paste two adhesive labels on the bottle and control them through the PLC and touch screen
Double-sided labeling machine is designed on the basis of double-sided labeling machine to meet some customer requirements for double-sided and round bottle labeling. Most suitable for square, flat bottles, circular containers, used for drugs, daily chemicals, food stationery, electronics, etc.
Bilateral labeling machine is a multi-function labeling machine, suitable for flat, oval, square and round bottles. The machine is controlled by a servo motor drive to ensure that the perfect labeling is accurate.
Specification
|
Name |
High speed double sided bottle labeling machine |
|
Labeling speed |
60-350pcs/min (depending on label length and bottle thickness) |
|
Object height |
30-350 mm |
|
Object thickness |
20-120 mm |
|
Tag height |
15-140 mm |
|
Tag length |
25-300 mm |
|
Inside diameter of label roller |
76 mm |
|
Label roller outer diameter |
420 mm |
|
Accuracy of labels |
±1 mm |
|
Power source |
220V 50/60HZ 3.5KW single-phase |
|
Printer fuel consumption |
5 kg/cm ^2 |
|
Dimensions of the labeling machine |
2800 (L) x 1650 (W) x 1500 (H) mm |
|
Weight of the labeling machine |
450 kg |
