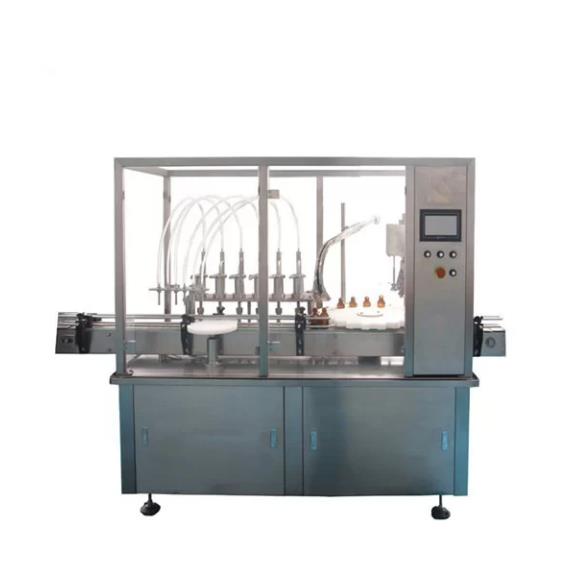

Automatic rotating peristaltic pump bottle filling machine

Product Description

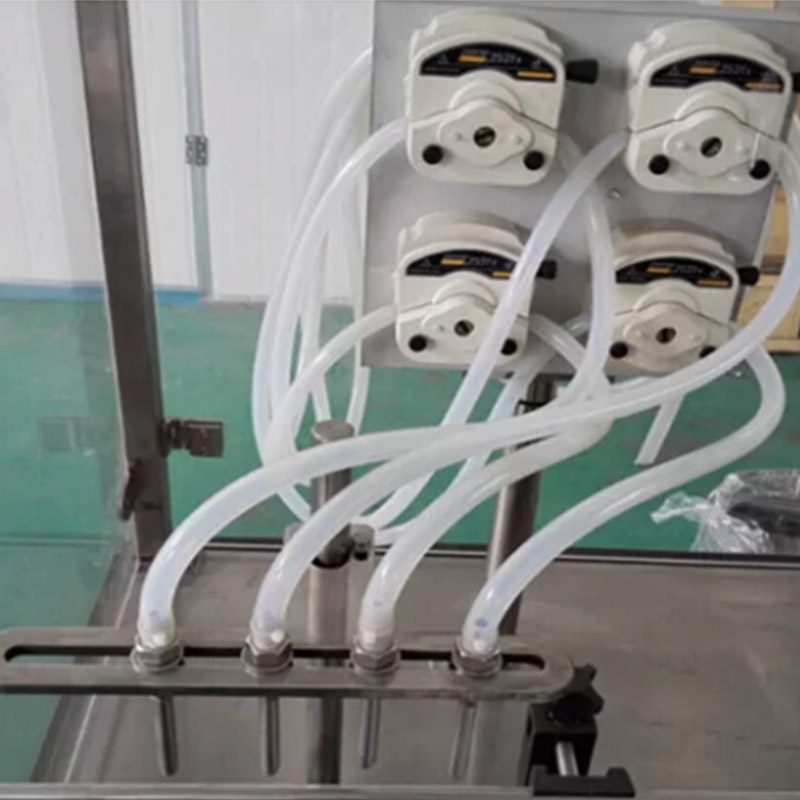

High precision peristaltic pump filling, accurate measurement, adjustable, clean, easy maintenance, easy to operate, no bottle no filling, no bottle no plug, no capping function. The working table is protected by 304 high-quality stainless steel material, and the contact part of the liquid is 316L high-quality stainless steel. The machine meets the GMP requirements.

This machine is suitable for pharmaceutical industry in the process of bottled liquid filling and sealing packaging. Aircraft structure is reasonable, automatic unbottle, filling and plug, plug, cap, cap, nut, high precision CAM classifier, for uniform chart positioning, no gap, accurate positioning.

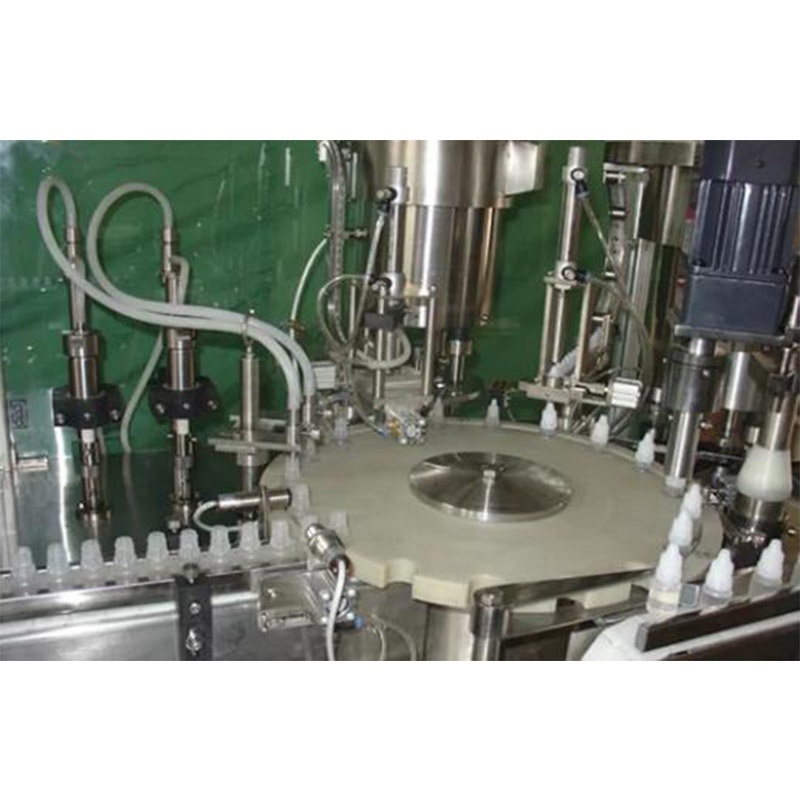

The machine is mainly composed of dust cover, conveyor belt, electric box, rack, stopper hopper, screw cap hopper, turntable and peristaltic pump.

Specification

Name

VK-OF Low viscosity automatic overflow filling machine

Filling nozzles

2-16 nozzles, or custom

Power

0.75KW-2.5KW

Application bottle series

30-100ml, 100-1000ml, 900ml -5000 ml

Application bottle series

≤ ±0.5%

Filling speed

500-4200 bottles/hour, 24b/min 1L per 4 filling nozzles

Size

2200*1400*2300 mm

Weight

400 kg

Power supply

220V single-phase 50HZ 380V three-phase 50HZ
