low viscosity automatic overflow filling machine

Product Description

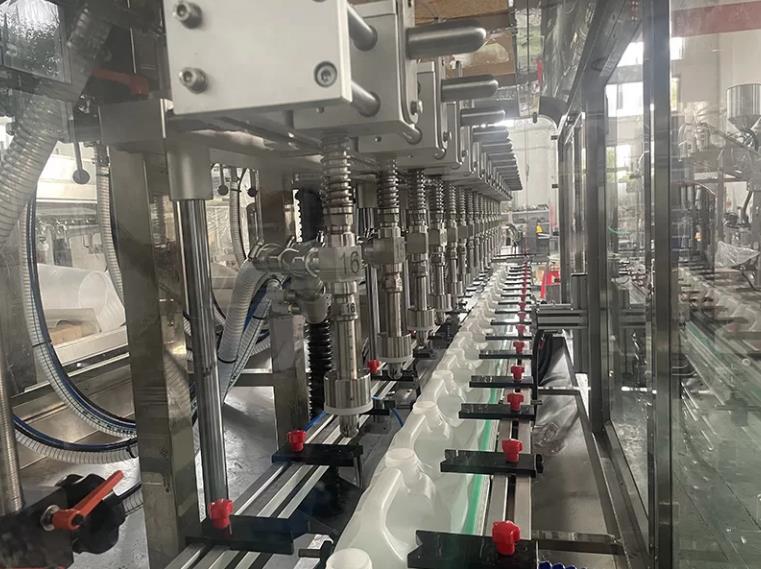

Low Viscosity Automatic Overflow filling machine is an extremely flexible filling machine, especially suitable for liquids from thin viscosity to high density, such as vinegar, soy sauce, white wine, hand sanitizer, etc. It is mainly used in the chemical, food and pharmaceutical industries.

Spare parts are processed by imported high-quality stainless steel CNC machine tools, and all major components are imported from Japan, Germany, Italy and the United States. Fully automatic, PLC control, touch screen operation, easy operation, almost no maintenance.

The low viscosity automatic overflow filling plant is built with 304 stainless steel frame and can support 2 to 16 filling nozzles PLC control and touch screen.

Specification

Production capacity

20-80 bottles/min

Application bottle

2-30 ml bottle

Filling nozzles

Filling nozzles 2 nozzles

Filling accuracy

Filling accuracy ≤ ±1%

Gland nozzle

Gland nozzle 1 nozzle

Capping rate more

Than 99% (depending on plug characteristics appropriate adjustment)

Speed control

Frequency conversion control

Bottle size

greater than 10 mm

Power supply

380V 50Hz, or customized

Power

2 kw

Air supply

0.3~04kfg/cm2

Gas consumption

10~15m3/h

Dimensions

2600*1300*1600 mm
