Product Description
Automatic marking is suitable for various bottle types, such as round, square, flat, curved, and cup bottles.
Our series of shrink sets uses the latest shrink technology, with a large control touch screen. Humanized operation, the host can easily and automatically adjust up and down. The labeling machine is precisely designed, even if the machine is used for a long time, the machine is still very stable and stable.
We have many models, from various speed choices of 100 to 150 / min, for a wide range that can be modified according to the shape of the package. We can always meet your various requirements, whether the bottle cap or bottle. The machine is suitable for pharmaceutical, food industry, health food, medicine, fruit juice, milk, beverage and other industries.
Specification
Name |
Automatic bottle marking machine |
ability |
6000-9000 bph (500ml bottle) |
FPY |
99.9% or higher |
Production efficiency of the whole line |
≥95% (24 hours) |
Applicable bottle diameter |
28 mm -120 mm |
Applicable label length |
30 mm to 250 mm |
Applicable label thickness |
0.027 mm ~0.13 mm |
Label material |
PVC, PET, OPS |
Inside diameter of the label |
≥4 inches (101.6 mm) |
Outer diameter of the label |
≤500 mm |
voltage |
AC380V, 50/60HZ, three-phase |
Output of label casing machine |
1.5 KW, 2 KW |

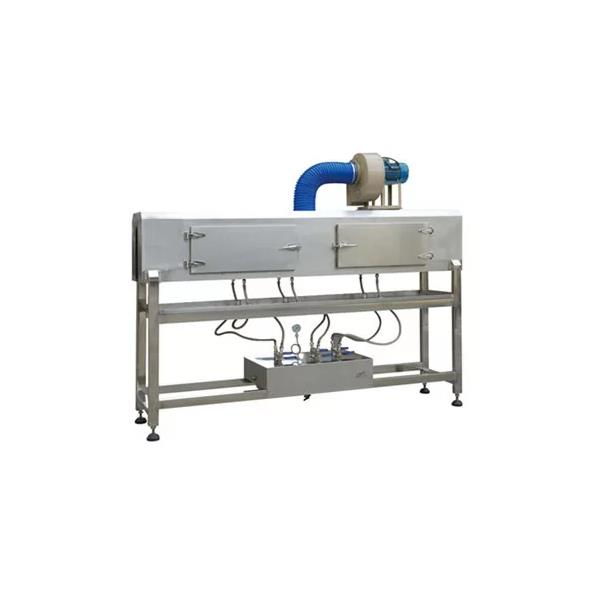

Steam shrinkage tunnel output |
0.37 KW |
Steam pressure |
1-8Kg/cm2 |
Steam consumption |
<25Kg/ hour |
Machine size |
Label casing machine: L2100*W850*H2000 mm |
weight |
500 kg |
